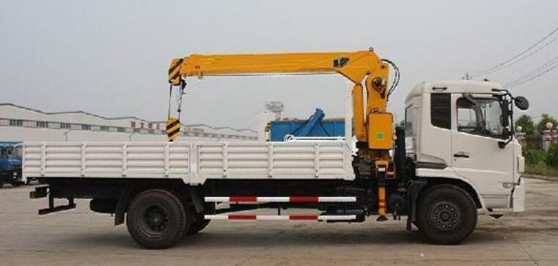

Dongfeng Chassis Truck Mounted Crane 2 tons -40 tons

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Brand Name : Dongfeng

Model Number : DFD1161G

Place of Origin : China

MOQ : 1 unit

Price : USD39240/unit

Payment Terms : T/T

Delivery Time : 30 working days

Packaging Details : in nude

dimension : 8900×2470×2710 mm

wheelbase : 5600 mm

power : 190hp

tire : 12R22.5

emission : Euro 3

Contact Now

Dongfeng Truck Mounted Crane DFD1161G

Dongfeng Chassis Truck Mounted Crane 2 tons -40 tons

Drive mode	4×2
Engine	Model	Cummins B190 - 40
	Type	6-cylinder in line, turbocharging, inter cooling, mechanical injection pump, built-in EGR
	Max. power(Kw/rpm)	140/2500
	Emission	Euro 4
	Max. torque(N.m/rpm)	550/1500
	Cylinder bore ×Stroke(mm)	102×120
	Displacement(ml)	5900
	Type of fuel	Diesel
	Compression ratio	(17.5±0.5) :1
Cab	D530	one and a half rows
Cab	Capacity	3 persons
Gearbox	Type	17G0A3-33
Gearbox	Max. torque(N.m)	750
Clutch	Φ395mm	push-type diaphragm spring clutch
Frame H×W× T(mm)	250×80×(7+4)
Axles	Front axle(Kg)	4500
Axles	Rear axle(Kg)	9000
No. of spring leaves	8/10+7
Tyre	Size	9.00R20
Air conditioner	A/C Optional
Dimensions	Overall dimension(mm)	8900×2470×2710
	Wheel base(mm)	5,600
	Front/Rear tread(mm)	1900/1800
	App./Dep. angel (°)	20/11
Performance	Max. speed(Km/h)	90
	Max. gradeability(%)	30
	Min. turning diameter(m)	17
Mass	Payload(Kg)	11,700
	Curb weight(Kg)	5,845
	G.V.W(Kg)	17,580
Crane	Crane Weight (Kg)	2120
	Max. Lifting Capacity (Kg)	5000
	Max. Lifting Moment (T.M)	12.5(Folding)
	Max. Working Radius (m)	8.5
	Max. Working Height (m)	10.5
