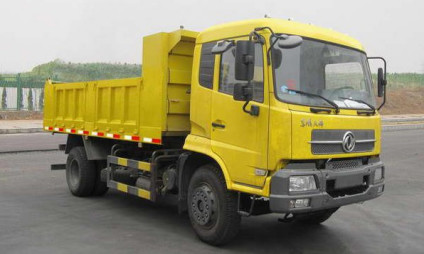

Dump Truck 4*2 Cummins engine 20tons

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dump Truck 42 Cummins engine 20tons
Brand: Dongfeng
Price: 33650 USD

Brand Name : Dongfeng

Model Number : DFL3120B1

Place of Origin : China

MOQ : 1 unit

Price : USD33650/unit

Payment Terms : T/T

Delivery Time : 30 working days

Packaging Details : in container

dimension : 8000×2500×2960 mm

wheelbase : 4500 mm

power : 190hp

tire : 12R22.5

emission : Euro 3

Contact Now

Dongfeng Dump Truck 4*2 Cummins engine

Dump Truck 4*2 Cummins engine 20tons

Drive mode	4×2
Engine	Model	Cummins B210 20
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
	Max. power(Kw/rpm)	155/2500
	Max. torque(N.m/rpm)	700/1500
	Bore /Stroke(mm)	102×120
	Displacement(ml)	5900
	Type of fuel	Diesel
	Compression ratio	17.5:1
	No. of valves	2
Cab	D530	one and a half row
Cab	Capacity	3 persons
Gearbox	Type	Fast8JS118
	Max. torque(N.m)	1180
	Gear ratio	8 forward/1 reverse 11.40 7.94 5.63 4.06 2.81 1.96 1.39 1.00 / 11.35(R)
Clutch	Φ395mm	push-type diaphragm spring clutch
Frame H×W× T(mm)	300×800×(8+6)
No of Spring leaves	8/10+8
Tyre	Size	11.00R20
Air conditioner	A/C
Dimensions	Overall dimension (mm)	8000×2500×2960
	Inner dimension (mm)	5400×2300×800
	Wheel base (mm)	4500
	App./Dep. angel (°)	25/20
Performance	Max. speed(Km/h)	90
Mass	Payload (Kg)	13,000
	Curb weight(Kg)	8,735
	G.V.W (Kg)	21,735.00
