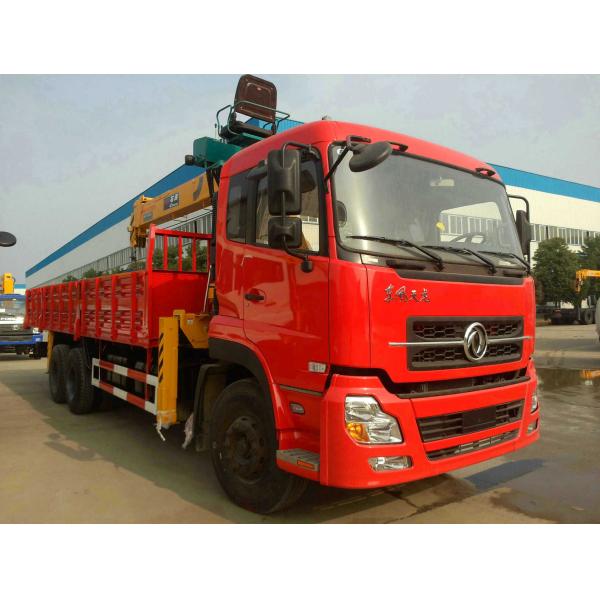

Dongfeng DFL1250 6X4 Truck Mounted Crane With Cummins C245 20 Engine

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dongfeng DFL1250 6X4 Truck Mounted Crane With Cummins C245 20 Engine
Brand: Dongfeng
Price: 60000 USD

Brand Name : Dongfeng

Model Number : DFL1250

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD60000-65000/ unit

Payment Terms : L/C, T/T

Supply Ability : 50 unit per month

Delivery Time : 25 days

Packaging Details : Nude

Name : Truck with crane

Engine : Cummins c245 30

Wheelbase : 5350+1300

Crane : XCMG 10T

Tire : Aeolus 10.00-20

Contact Now

Truck	Drive mode	6×4
	Chassis	DFL1250A9
	Engine	Model	Cummins C245 20
		Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
		Max. power(Kw/rpm)	180/2200
		Max. torque(N.m/rpm)	1025/1400
		Bore/Stroke(mm)	114×135
		Displacement(ml)	8300
		Type of fuel	Diesel
		Compression ratio	(18±0.5):1
		No. of valves	2
	Dimensions	Overall dimension (mm)	11980×2500×3750
		Wheel base (mm)	5350+1300
		Front/Rear tread(mm)	1986/1860
	Mass	Payload (Kg)	9815
		Curb weight(Kg)	14990
		G.V.W (Kg)	25000
Crane	Crane Weight (Kg)	3500
	Max. Lifting Capacity (Kg)	10000
	Max. Lifting Moment (T.M)	25
	Lifting Capacity/Working Radius (Kg/m)	10000/2.5
		5500/4.5
		2300/9.0
		1500/12.0
	Max. Working Radius (m)	12
	Max. Working Height (m)	13.8

Dongfeng DFL1250 6X4 Truck Mounted Crane With Cummins C245 20 Engine
